Description

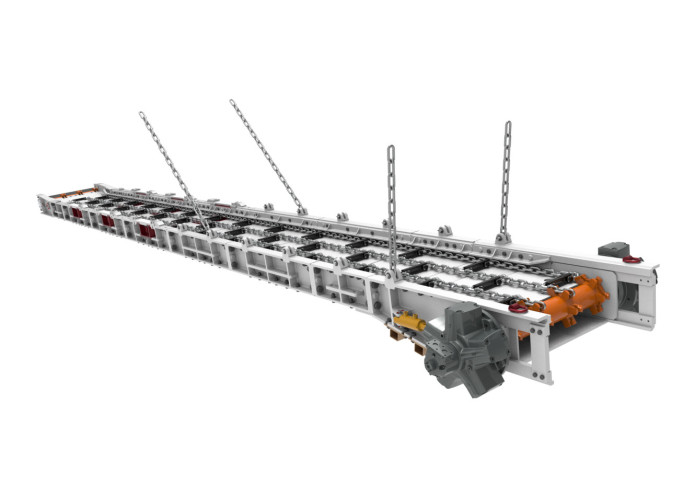

We supply scraper conveyors for projects involving the transportation of coal, stone extraction, handling of products, etc. These are devices used for the extraction of coal during longwall mining. Disconnected coal from the face, or other bulk materials, is extracted by a continuous miner that moves along the scraper conveyor.
Technical Specifications
| Capacity | up to 4000 t/h |
| Drive power | up to 3×1000kW |
| Maximum length | 400m |
| Side profile | rolled / cast |
| Deckplate thickness | up to 50mm |
| Max. inside raceway | 1300mm |
| Pan connector | up to 4000mm |
| Chains | up to Ø48 |
| Drive design | side / overhead discharge / cross frame |
| Tail drive | fixed / tensionable |
| Gearboxes | planetary |
| Couplings | flexible / fluid |
