Description

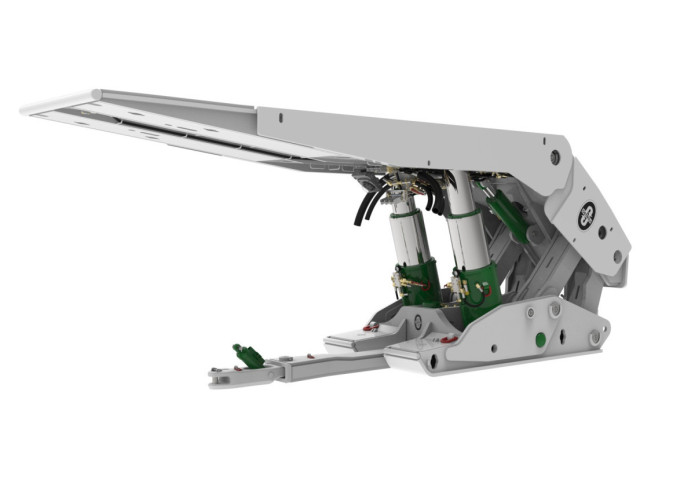

Mechanized supports are used in the extraction of material in longwall mining. They are used to support the roof of the mine after material extraction and to separate the operation and potential collapse area.
Technical Specifications
| Closed height | from 700mm |
| Extended height | up to 6000mm |
| Minimum working height | 800mm |
| Inclination along the face | ±45° |
| Inclination for special application | ±90° |
| Support centres | 1500–1750–2050mm |
| Max. leg bore diameter | 420mm |
| Capacity of support | 11,000kN |
