Description

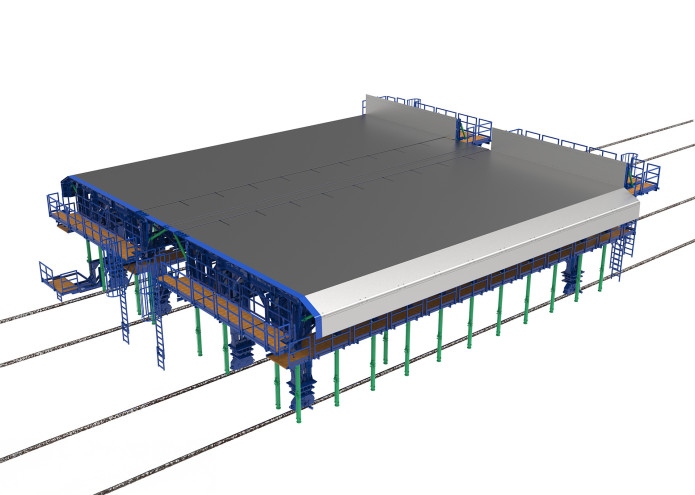

Mobile formwork is used to create the secondary lining of tunnels. The equipment forms a so-called envelope onto which concrete is placed, shaping the final geometry of the tunnel. Once the concreting of one section is completed, the formwork is moved into position for the next section.
Technical Specifications
| Weight and dimensions | according to project |
| Length | usually 10–20m (longer on request) |
| Height adjustment | 200–2200 mm (higher on request) |
| Maximum inclination | up to 5° |
| Operating voltage | 400V / 50Hz |
| Drive | hydraulic / electric |
| Controls | manual / remote radio control |
| Accessories | Depending on customer requirements (lighting, cranes, connection to the system formwork, etc.) |
